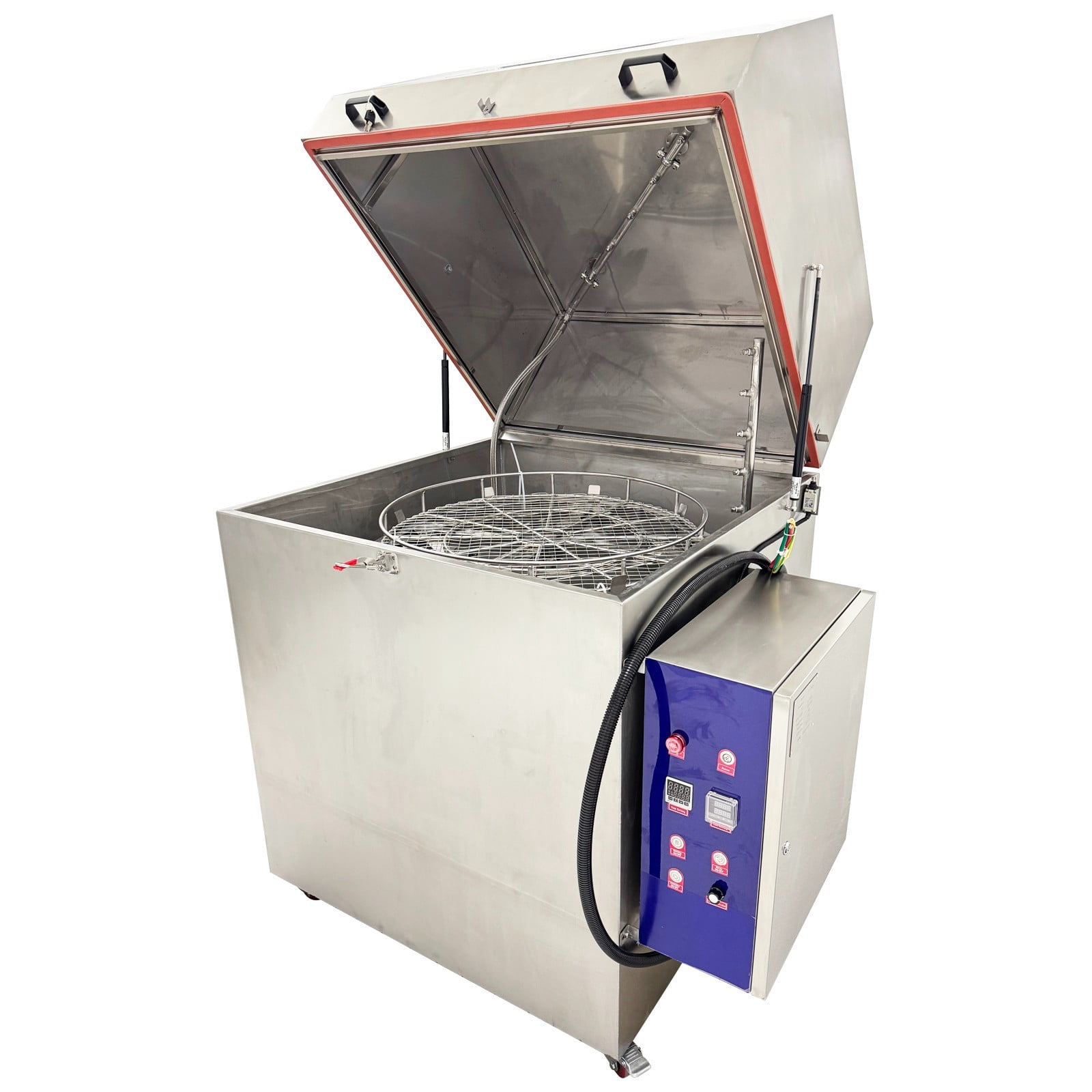

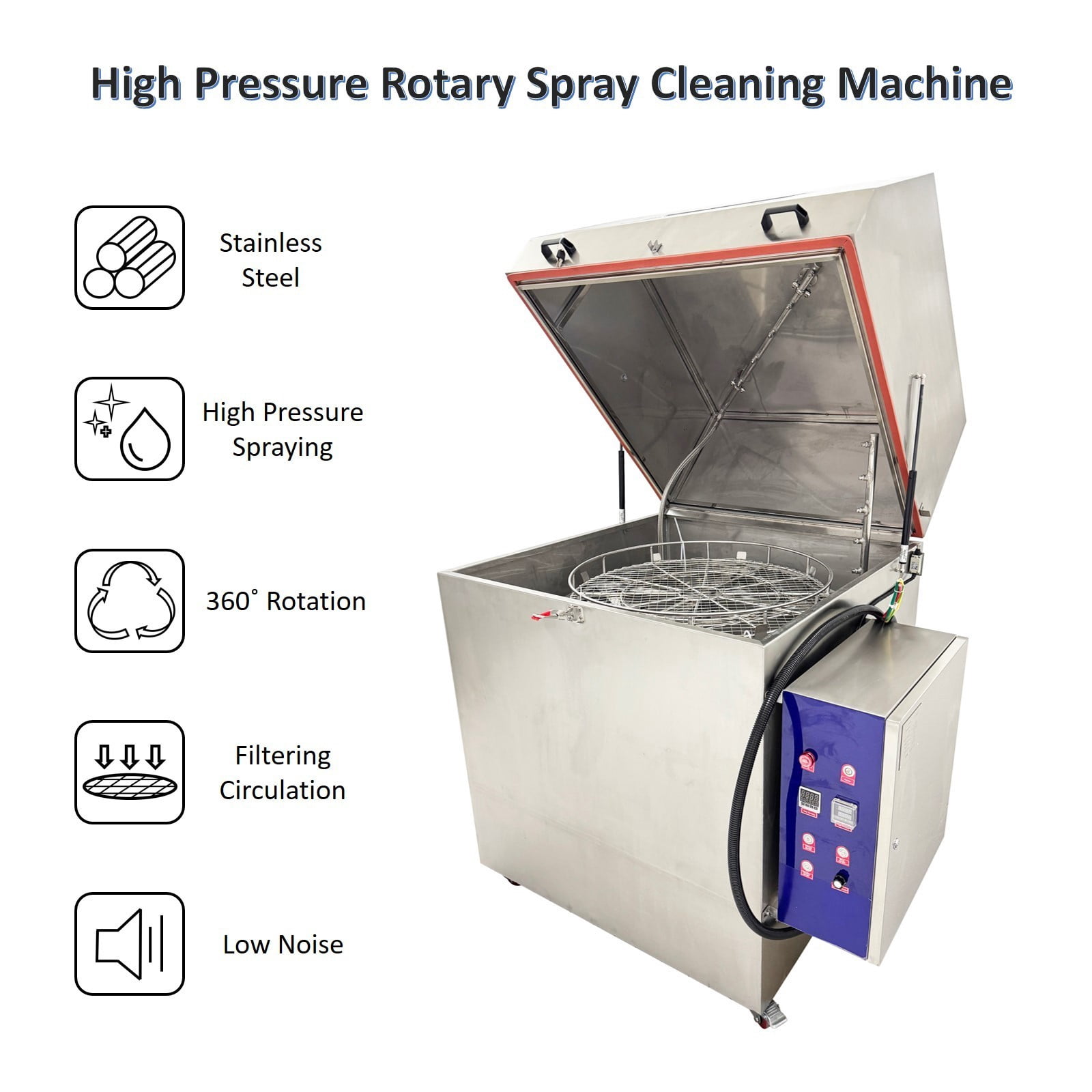

220V 3-Phase Spray Wash Cabinet Part Washer High Pressure Rotary Spraying Cleaning Machine

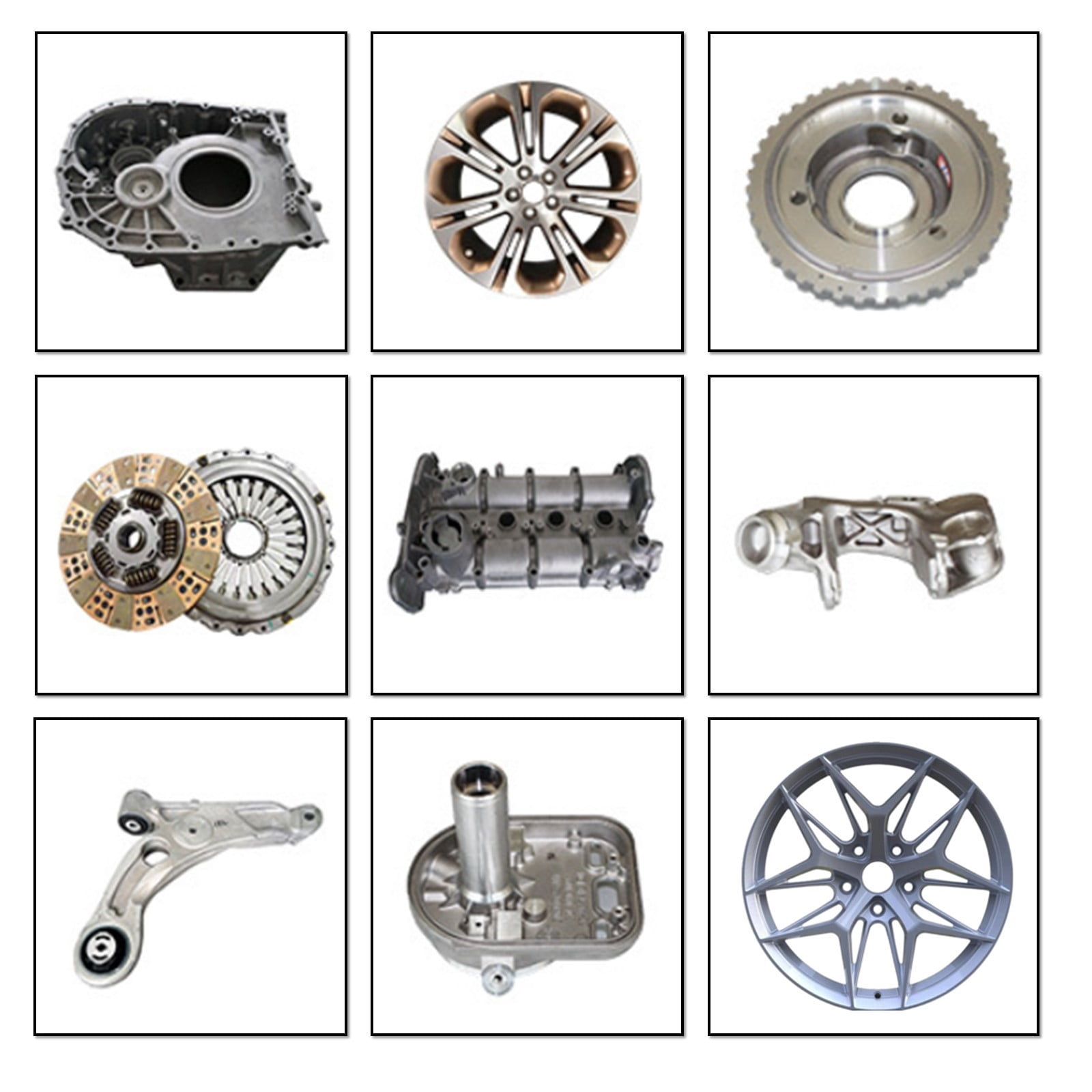

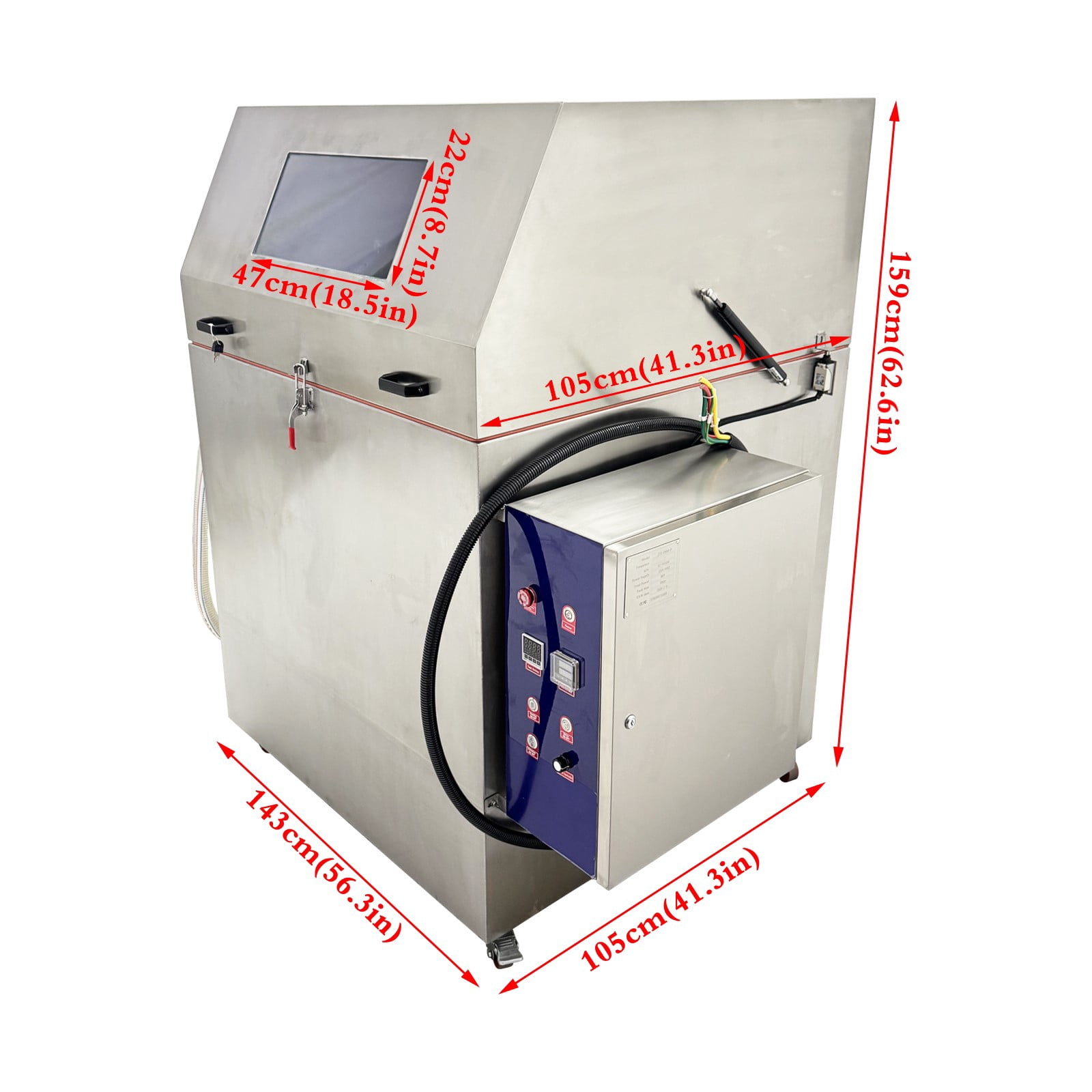

<p>Introduction:<br>The spray wash cabinet is a professional spraying cleaning machine specially designed for spraying the cleaning solution to the workpiece surface to remove oil stains, iron scraps and other dirt. It adopts the combination of high-pressure flow and mechanical rotation of Φ800mm cleaning basket, achieving 360˚ efficient and thorough cleaning of large metal workpieces. The rotary spraying cleaning machine can be widely applied to oil and chip removal and cleaning of hubs, brake discs, castings, parts, fasteners and other parts and is suitable for the industries of automobile accessories, hardware, etc.</p> <p>Product Parameters<br>Cleaning basket <br>Diameter: 31.5in (800mm)<br>Working height: 19.7in (500mm)<br>Load capacity: 551LB (250kg)<br>Electric motor: 0.04kW<br>Rotating speed: 5-10R/Min<br>Power supply: 220V 60Hz 3-phase<br>Volume of spraying tank: 26.4 us gal (100L)<br>Heating power: 6kW<br>Power of water pump: 1.5kW<br>The material of the inner groove that comes into contact with the liquid: SUS304 stainless steel<br>Body shell material: SUS201 stainless steel<br>Spraying pressure: 0.3-0.5MPa<br>Packing dimension: 62.99*47.24*68.90 inches (160*120*175cm)</p> <p>Net weight / Gross weight: 639.3LB (290kg) / 854.3LB (387.5kg)</p> <p>&nbsp;</p> <p>Operation Method<br>Before starting the machine, please confirm:<br>1. The machine is installed stably and the shell is well grounded.<br>2. Connect the main drain pipe under the machine body to the factory's drainage system.<br>3. Connect the power cord correctly and firmly as required.<br>4. Inject cleaning fluid to the working liquid level.</p> <p>Application<br>The cleaning machine can effectively clean various workpieces, such as bearings, hubs, castings, brake discs and rods, and ensure oil stains and other scraps are removed completely.</p> <p>&nbsp;</p> <p>Item Included (057348): 1 x Spray Wash Cabinet 220V</p>

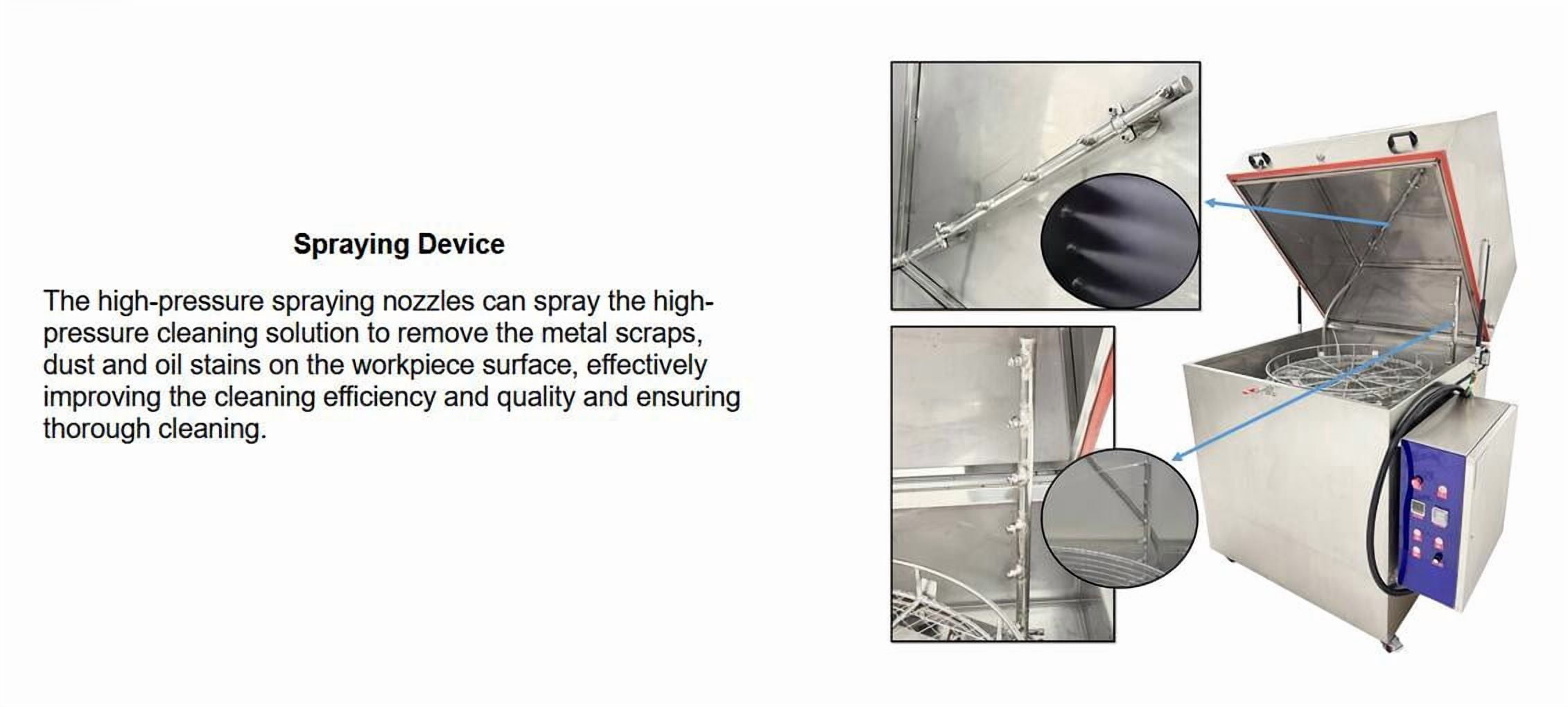

• 【360˚ Deep Cleaning Power】 Featuring high-pressure spraying and a rotating basket design, this machine reaches every gap, blind hole, and groove to thoroughly remove stubborn oil stains and iron scraps, ensuring a 100% cleaning pass rate.
• 【Boost Efficiency & Cut Costs】 Designed for maximum productivity, this unit allows for single-person operation. It significantly saves time and labor while reducing energy and material consumption for superior cost performance.

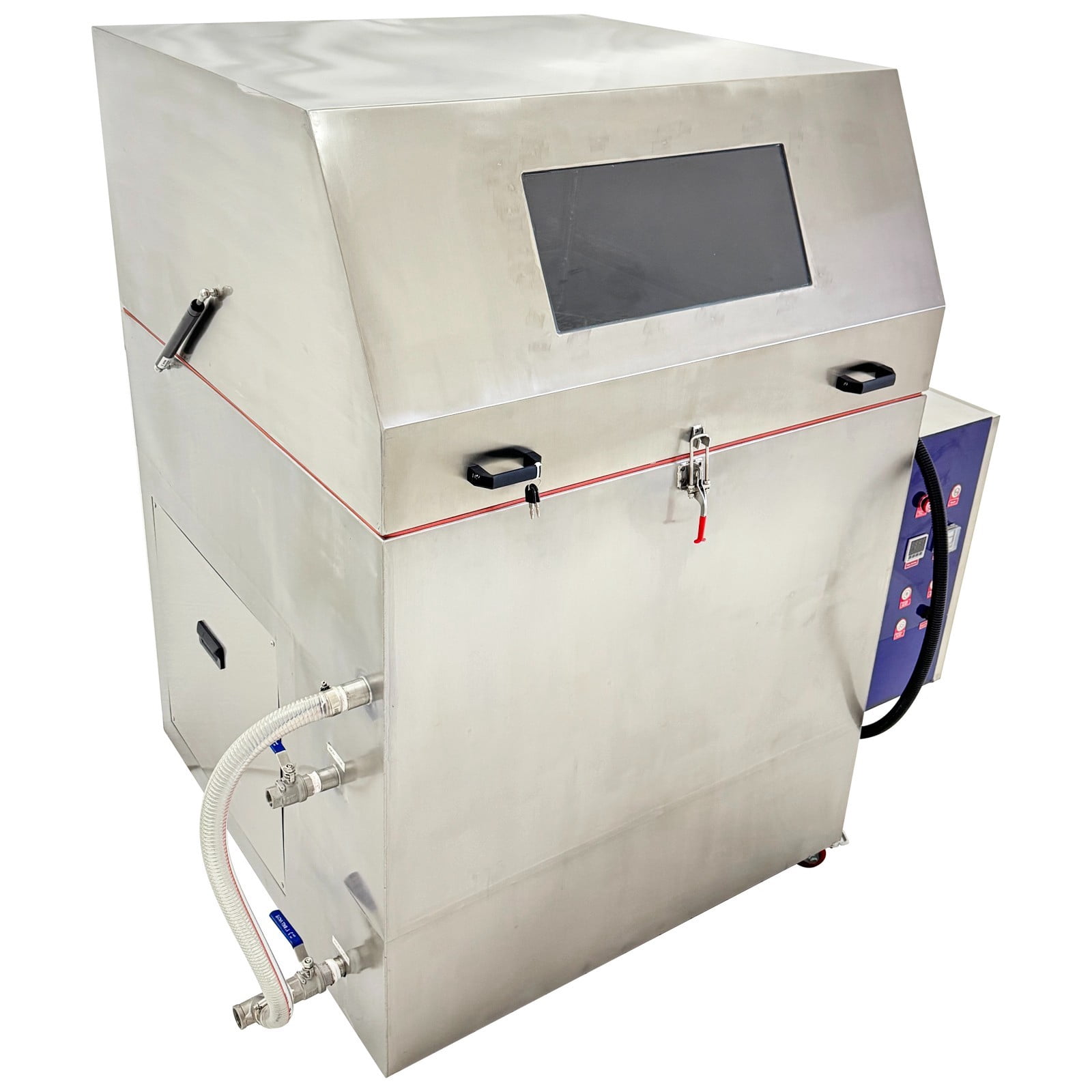

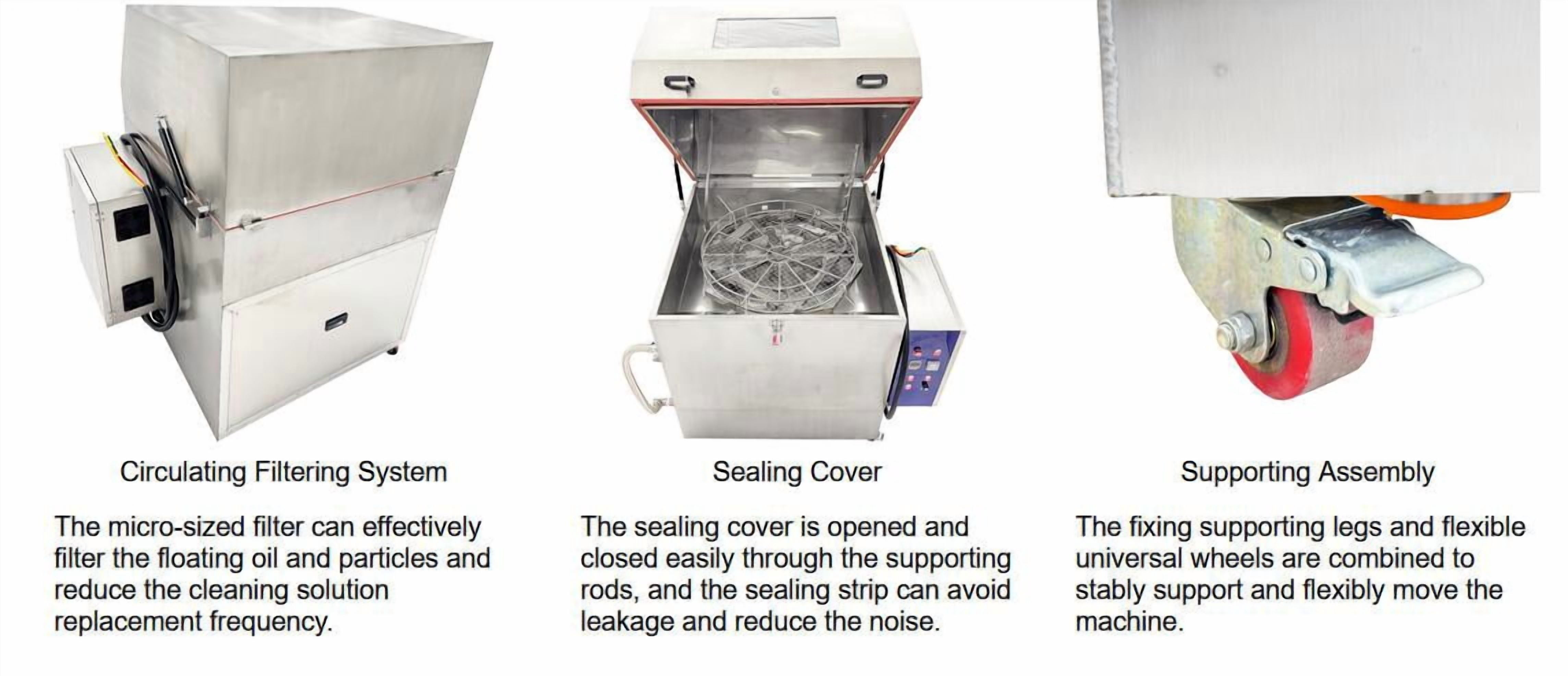

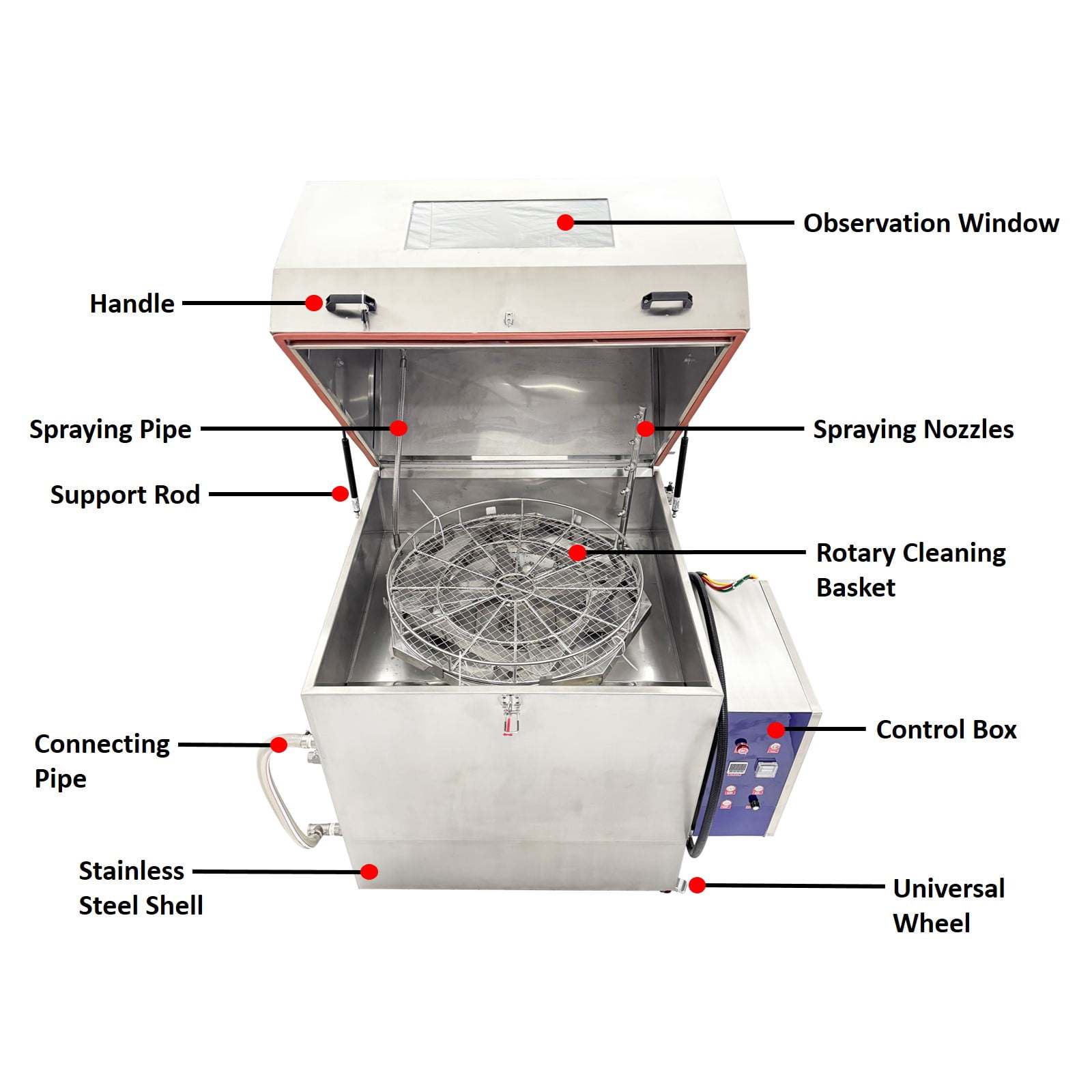

• 【Durable & User-Friendly Design】 Crafted from corrosion-resistant stainless steel, it is built to last. The openable cover and observation window make it easy to monitor the cleaning process and perform daily maintenance.

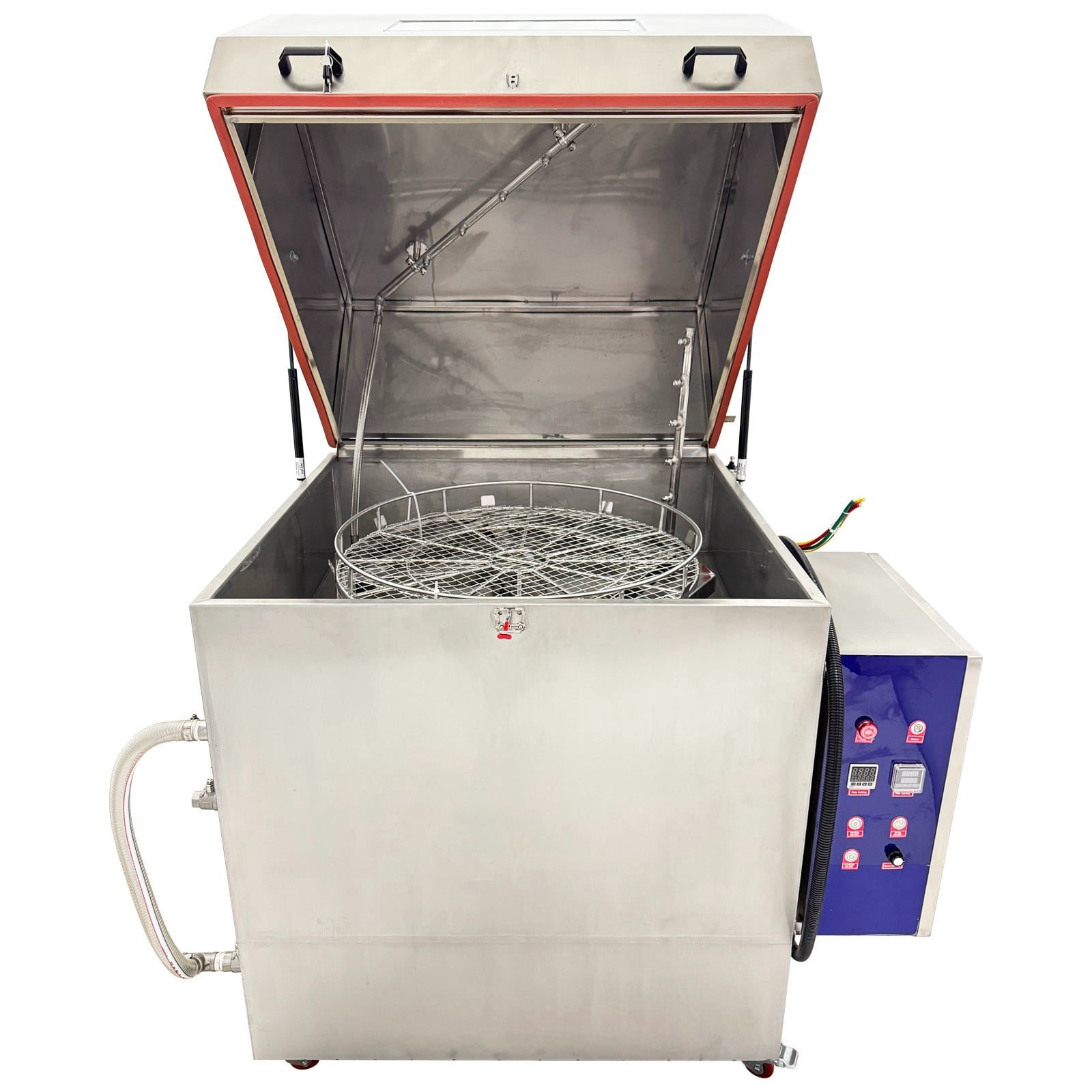

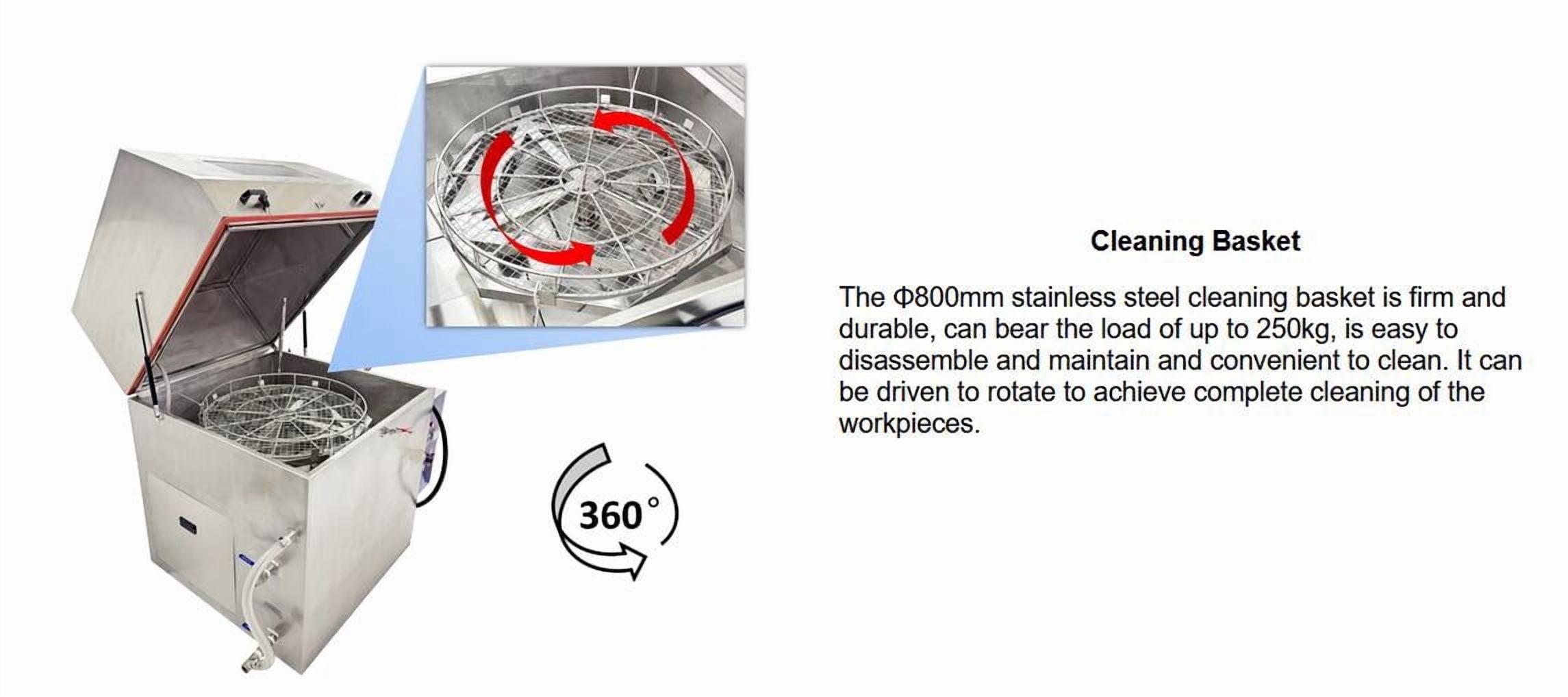

• 【Professional Mechanical Action】 Utilizing a Φ800mm cleaning basket with mechanical rotation, this system delivers efficient, large-scale cleaning specifically engineered for heavy-duty metal parts.
• 【Versatile Industrial Application】 Perfect for the automotive and hardware industries, this machine effectively cleans a wide range of large metal workpieces, including bearings, hubs, brake discs, castings, and fasteners.
