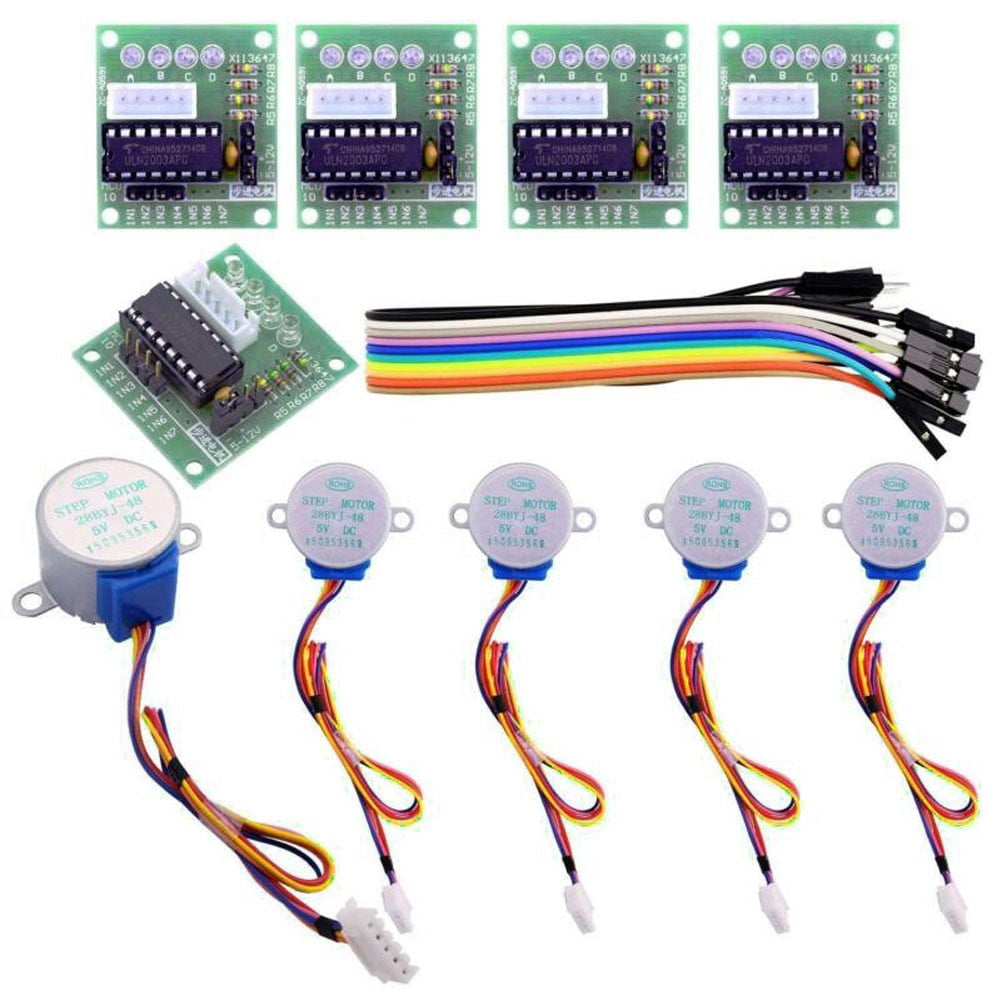

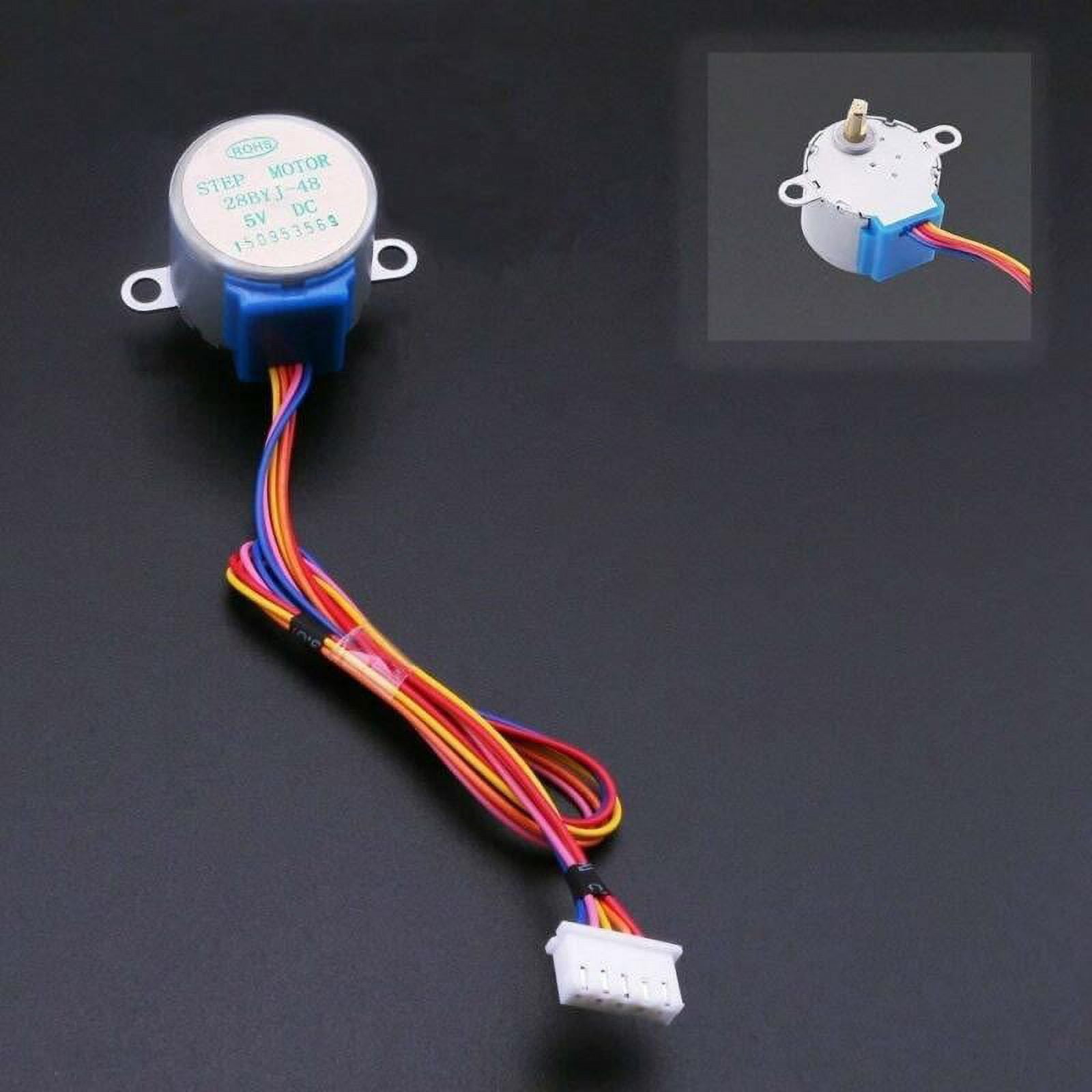

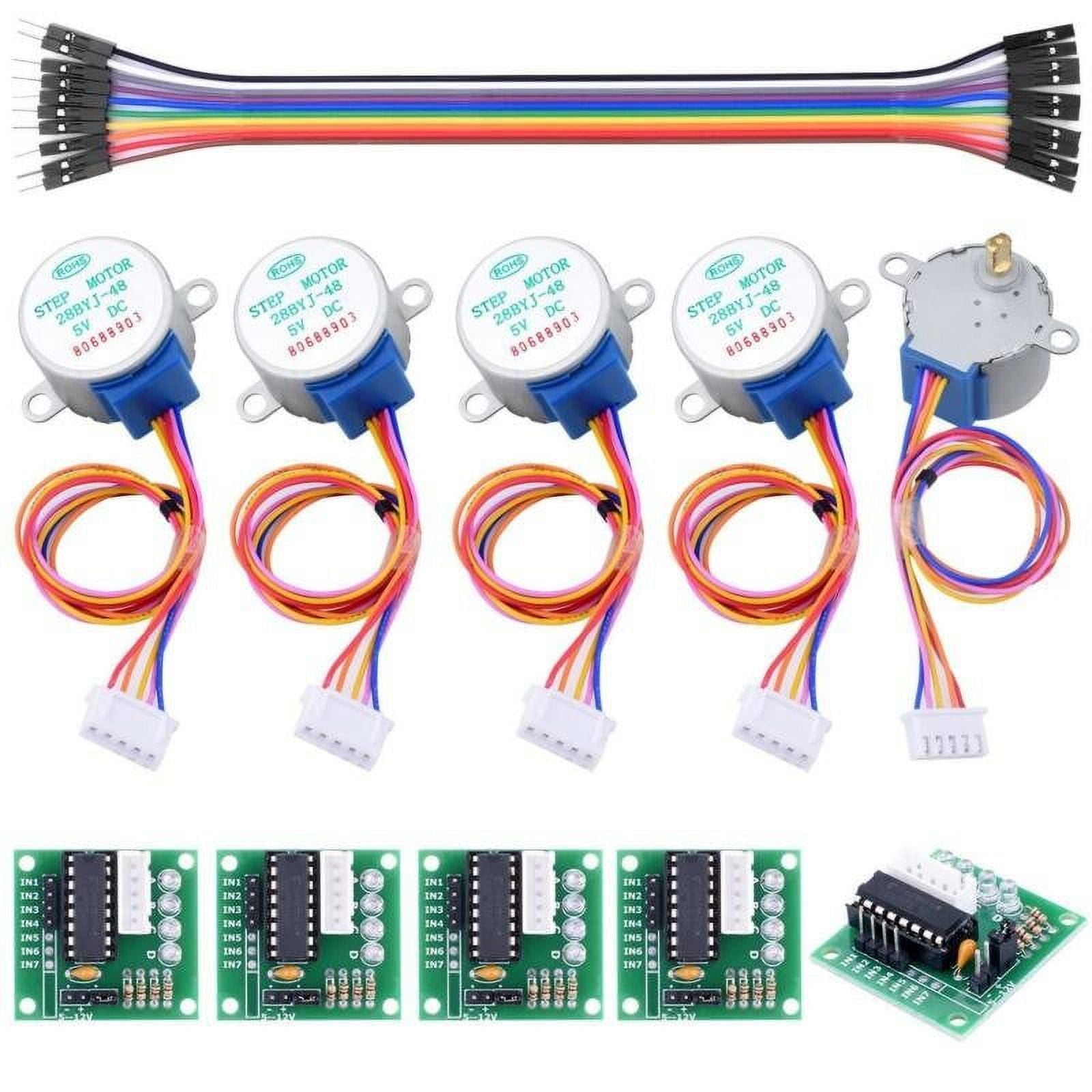

5V 4-Phase Geared Stepper Motor with Uln2003 Driver Board 28Byj-48 for Arduino

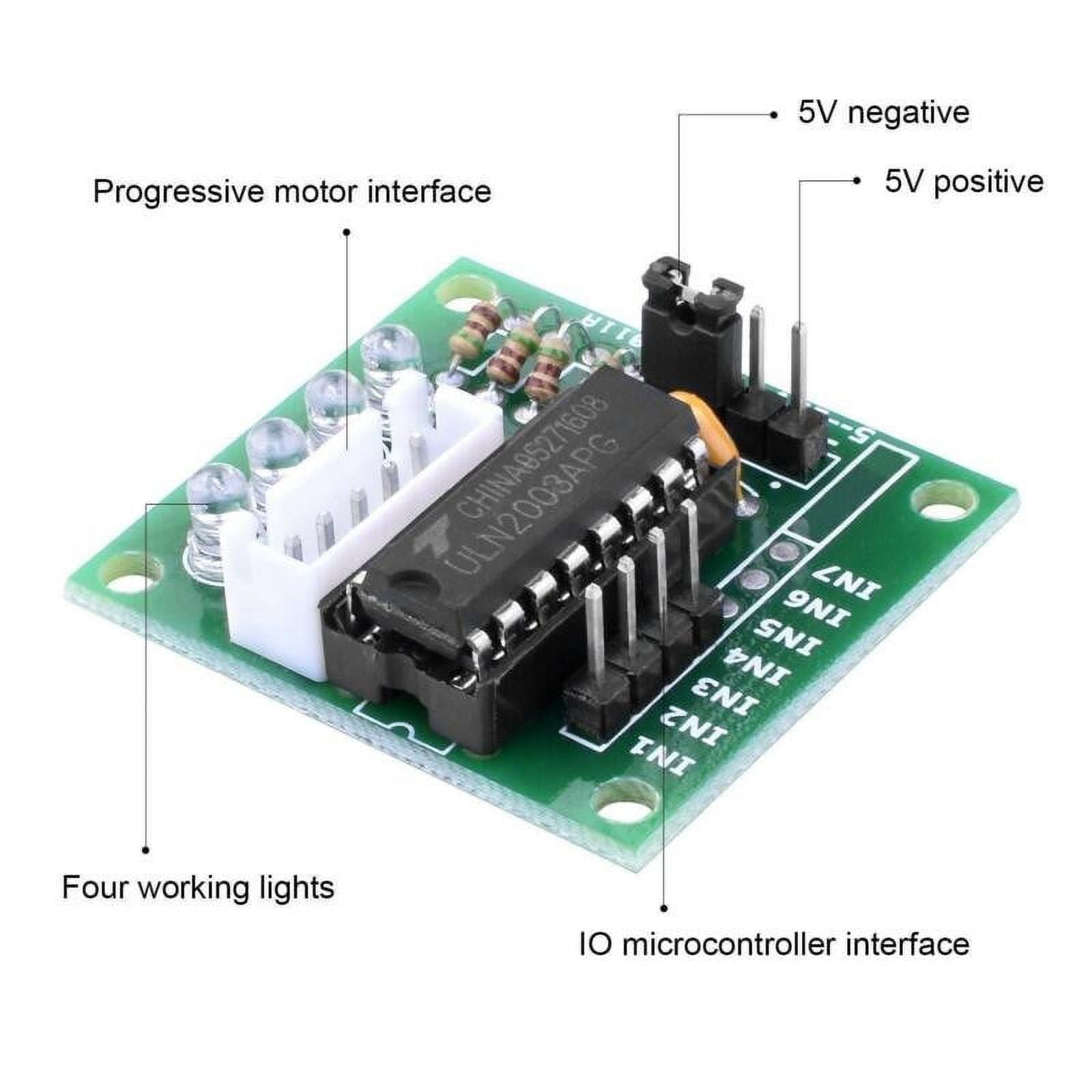

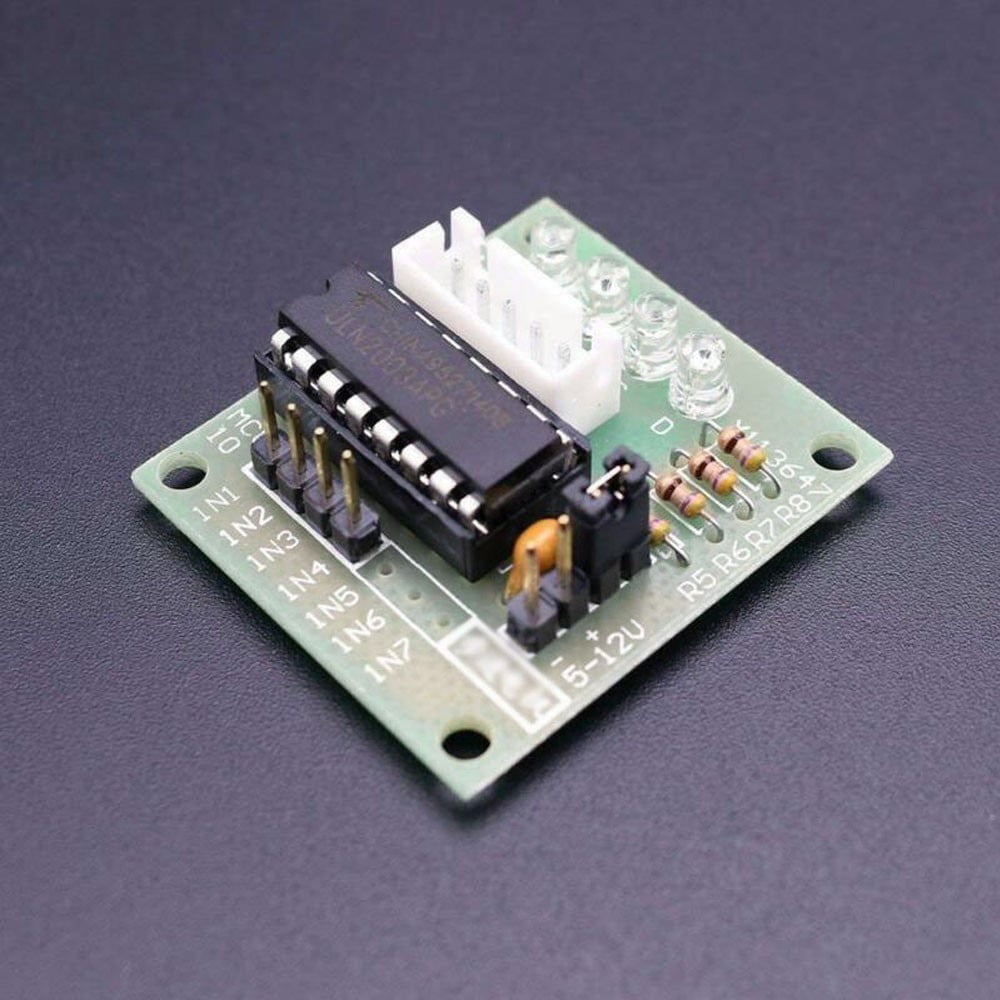

<p><strong>Features</strong><strong>:</strong><br></p><p><strong> </strong><strong></strong></p><p>* brand new and high quality</p><p>*Made of high quality material, durable and practical to use</p><p></p><p>*5V 4-Phase Geared Stepper Motor with ULN2003 Driver Board 28BYJ-48 For Arduino</p><p>*DC 5V 4-phase stepper motor + driver test module board for Arduino</p><p>*The driver board has A, B, C, D four-phase LEDs to indicate the working state of the stepper motor</p><p>*Stepper motor with standard interface, can be directly plugged and used</p><p>*Wear-resistant and reliable</p><p> </p><p><strong>Specification:</strong><strong></strong></p><p> </p><p>*Color: As pictures show</p><p>*Rated voltage: DC5V 4 phase</p><p>*Step angle: 5.625 x 1/64</p><p>*No-load pull-in frequency: &gt; 600Hz</p><p>*No-load pull-out frequency: &gt; 1000Hz</p><p>*Pulling torque: &gt; 34.3mN.m (120Hz)</p><p>*Brake torque: &gt; 34.3mN.m</p><p>*DC resistance: 200Ω±7% (25C)</p><p>*Insulation resistance: &gt;10MΩ (500V)</p><p>*Dielectric strength: 600V AC / 1mA / 1s</p><p>*Insulation class: A</p><p>*Temperature rise: &lt;40K (120Hz)</p><p>*Noise: &lt;40dB (120Hz, no load, 10cm)</p><p>*Diameter: 2.5 cm (Approx.)</p><p>*Width: 2 cm (Approx.)</p><p><strong> </strong><strong></strong></p><p><strong>Package Contents:</strong><strong></strong></p><p><strong> </strong><strong></strong></p><p>5*Drive Boards</p><p>5*Stepper Motors</p><p> </p><p><strong>Note: </strong><strong></strong></p><p> </p><p>1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.</p><p>2.Please allow slight manual measurement deviation for the data.</p>

• Made of high quality material, durable and practical to use.
• Perfect functions,give you a wonderful experience.
• If you have any questions, please feel free to contact us, we will solve it for you.
• Every customer can enjoy 30 days refund or replacement for Damaged/Quality Issues.
• 5V 4-Phase Geared Stepper Motor with Uln2003 Driver Board 28Byj-48 for Arduino.
