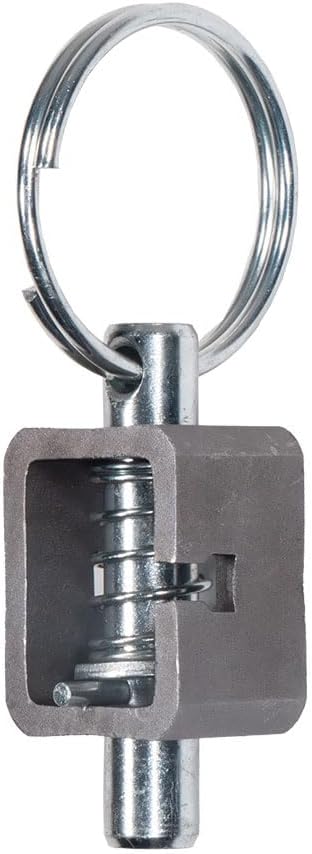

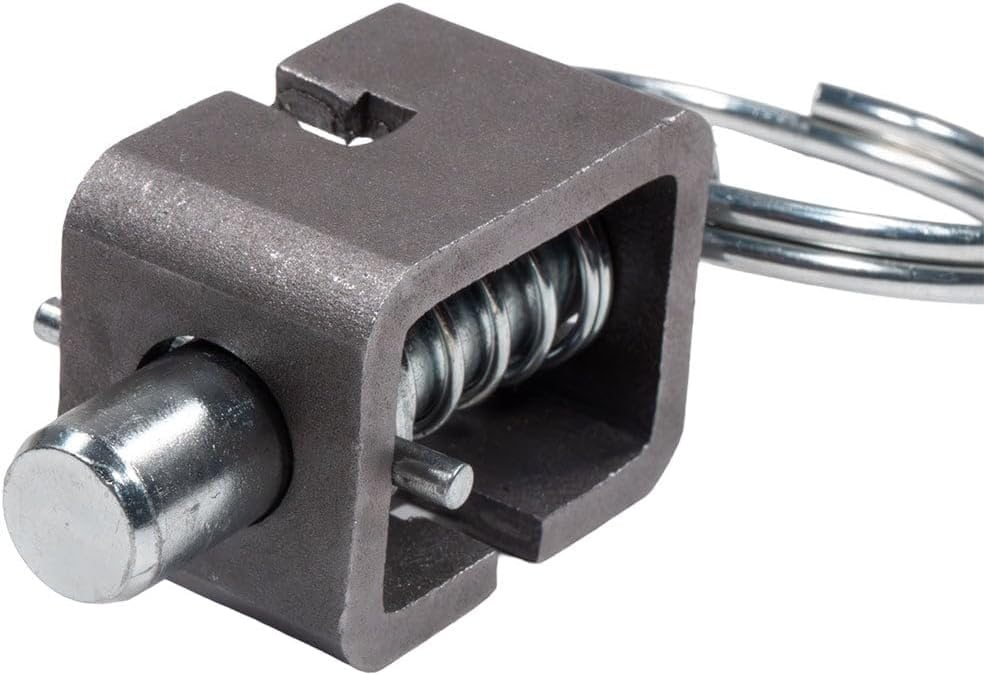

Mytee Products 4 Pack Weld-On Spring Loaded Latch, 5/8" Steel Heavy-Duty Trailer Gate Latch, Universal Spring Latch Assembly for Trailer, Truck, Ramp Holders

Want a secure and reliable locking solution for your machinery and equipment? We bring a small spring latch lock for quick engagement and release. This small trailer gate latch is used where a strong and secure hold is needed and where parts might need quick locking and unlocking. It is commonly used in the transport and shipping industry with trailers as door locks, or ramp holders for securing loading ramps. It is mostly used with trailers as a door lock or to secure additional equipment in trailers or other farming attachments. It can also be used with heavy-duty machinery. You can find the other necessary details of our spring lock below:Bolt: The bolt of the spring lock is 2" long and has a diameter of 5/8". It is made from stainless steel and is strong and rust-resistant. The bolt moves in and out of the latch housing when the handle is pulled. The surface of the spring lock provides a clean, metallic appearance.Housing: The housing is the main body of the spring latch lock that holds the bolt and spring in place. It has dimensions of 2" in height, and 1-1/4" in width. It is made from carbon steel and provides a sturdy structure for the bolt to operate within.Pin: The pin length of our small spring lock is 3-3/8". It acts as a locking mechanism within the spring latch assembly, holding the bolt in place to secure the gate or door until the handle is pulled to release it.Spring Latch: This latch uses a spring mechanism to automatically secure the bolt into the locked position when released. The spring provides tension that keeps the bolt pushed into the locked position without requiring external force. When you pull the handle, it retracts the bolt against this spring tension and allows the gate or door to open. Round Handle: The round handle is 2-1/2" in length. It is made from carbon steel with a zinc-plated finish for corrosion resistance. The handle is used to pull the bolt back, which compresses the spring and allows the latch to disengage.Application: This latch is commonly used for machinery, equipment maintenance, and safety guards. It is ideal for transport applications where doors, ramps, or other components are required to stay closed during transit such as in trailer doors, or ramp holders for securing loading ramps. It is also suitable for latches on trucks, trailers, and other heavy-duty machinery that need strong and reliable locking mechanisms.Installation: You need to weld the housing onto the desired surface, such as a trailer gate or door frame. Make sure that the position aligns with the gate frame so the bolt can slide in and out of the housing freely.

• Technical Specifications: Bolt Diameter: 5/8"; Bolt Length: 2"; Bolt Travel: 19.00/32.00; Pin Length: 3-3/8"; Housing Height: 2"; Housing Width: 1-1/4"; Round Handle Diameter: 2-1/2"
• Material: Steel
• Surface Finish: Plain
• Latch Style: Spring Latch; Handle Finish: Zinc Plated
• Mount Type: Weld on
